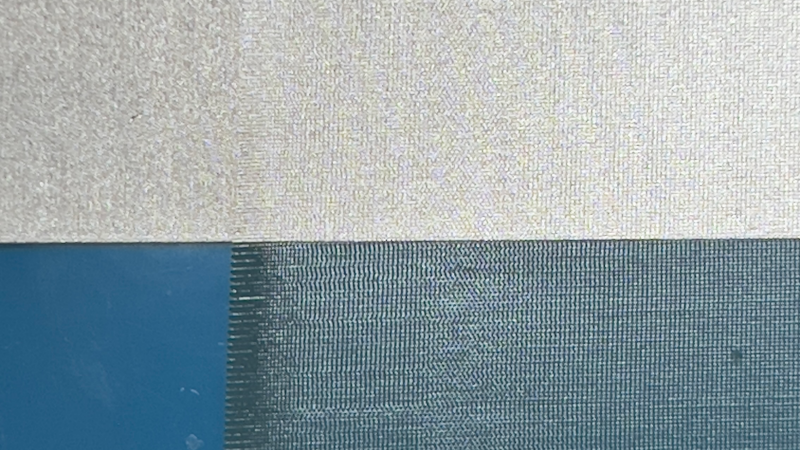

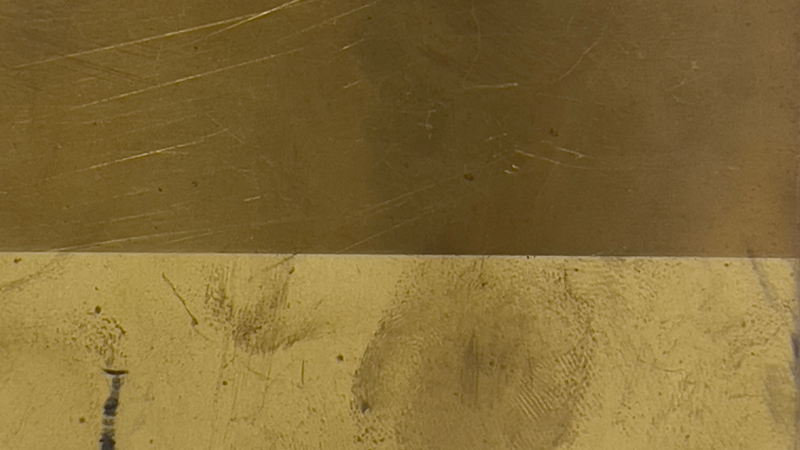

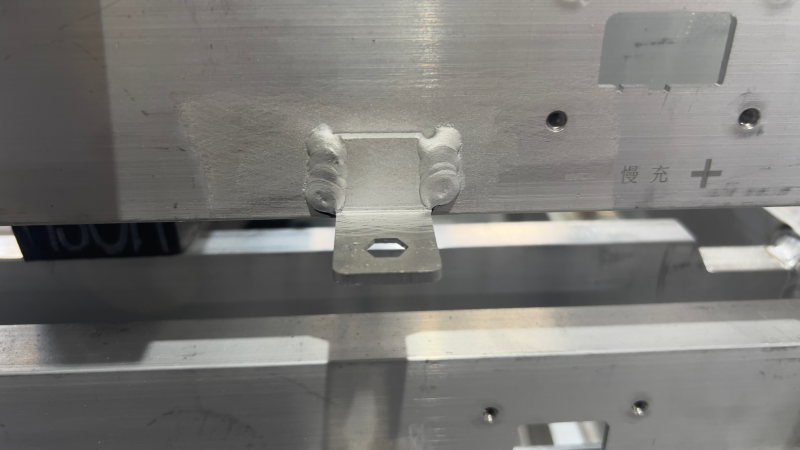

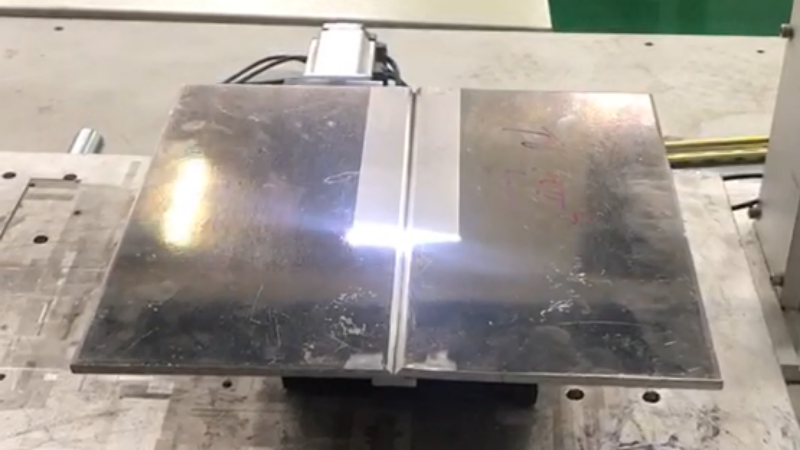

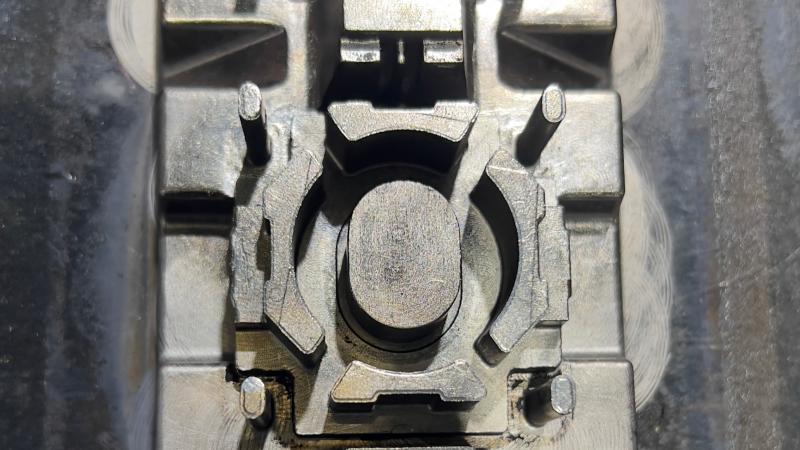

This series of products is mainly used for cleaning various metal surfaces with local rust, paint, coatings, natural/artificial oxide films and other pollutants, including layered cleaning of paint, precise selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces. Typical application scenarios include artificial oxide film cleaning before welding the storage tank ring of launch vehicles, oxide film cleaning before MIG welding and black ash oxide cleaning after welding of rail crossing aluminum alloy vehicle body floor, cleaning before brazing the side panel of automotive galvanized sheet top cover, cleaning of KTL coating on power battery top cover, cleaning and repairing of insulator ineffective layer, etc.
The substrate is undamaged and free from thermal deformation
Closed dustproof design
The cleaning process warehouse can be accessed at any time

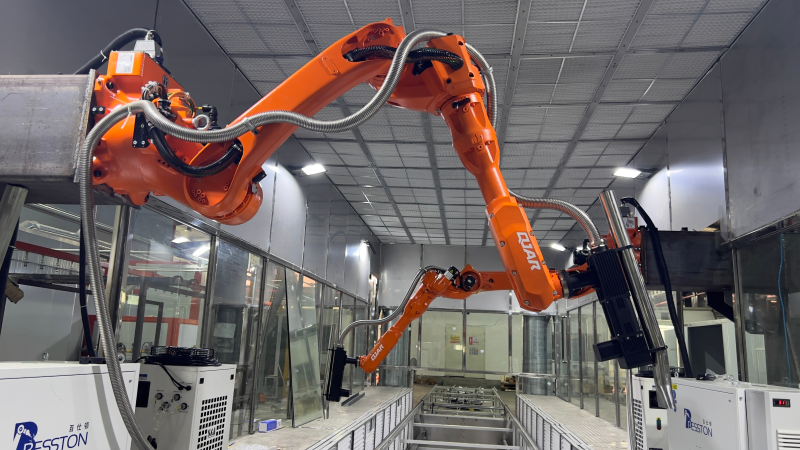

Easy to integrate with robots, CNC, etc
Remote intelligent control screen is easy to operate
Dual engine cooling system operates continuously at high temperatures

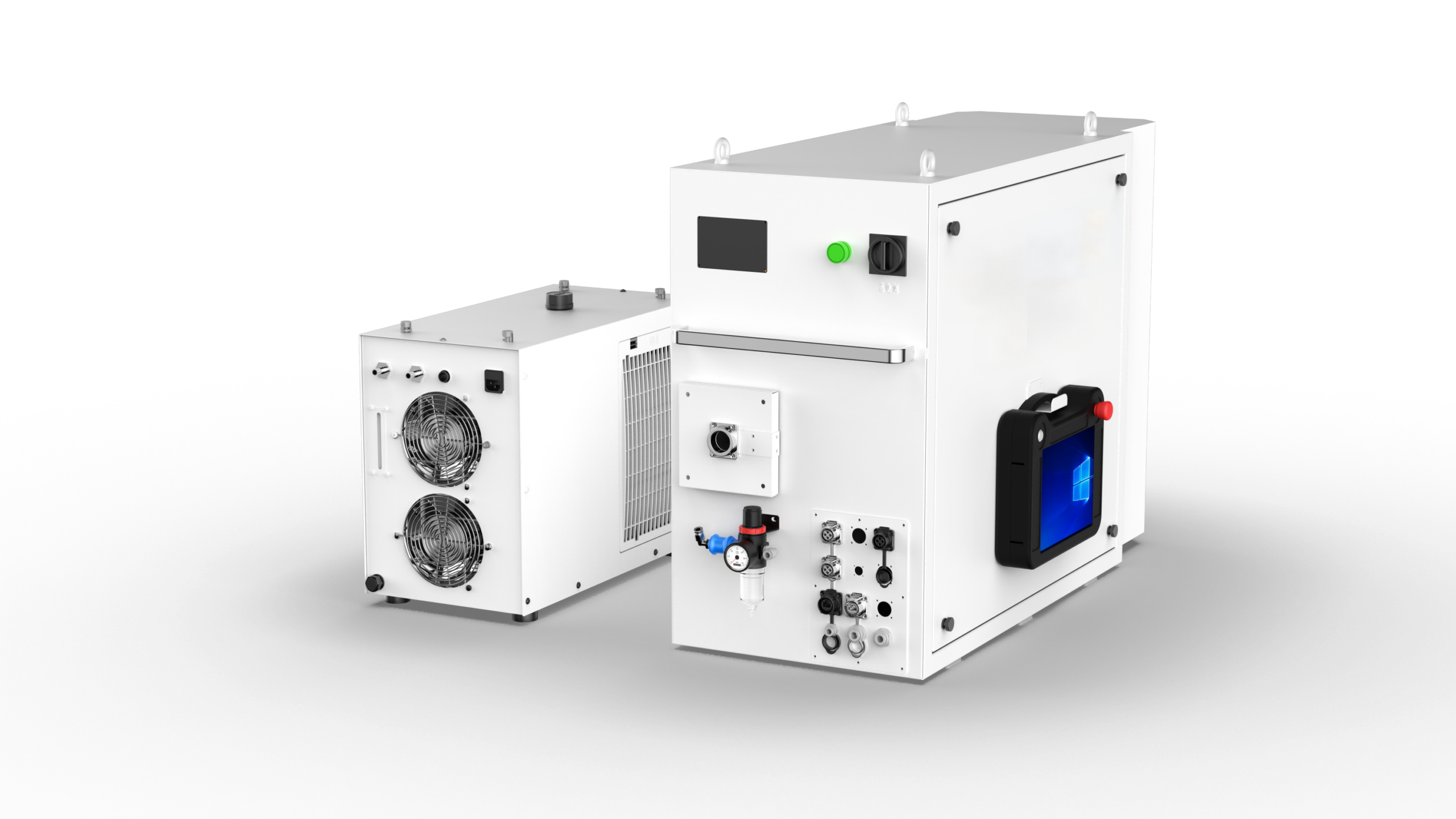

| Model | LCP-C-
100W/200W/300W |
LCP-C-500W | LCP-C-
1000W/2000W |
| Average laser power | 100W/200W/300W | 500W | 1000W/2000W |
| Laser center wavelength | 1064nm | 1064nm | 1064nm |
| scanning Width | 5mm~150mm adjustable | 5mm~150mm adjustable | 5mm~150mm adjustable |
| Cooling Method | Cabinet air conditioning cooling/water cooling+ cabinet air conditioning cooling |
Water cooling +cabinet air conditioning cooling |
Water cooling+cabinet air conditioning cooling |
| Fiber Length | 5m | 5m(customizable) | 5m(customizable) |

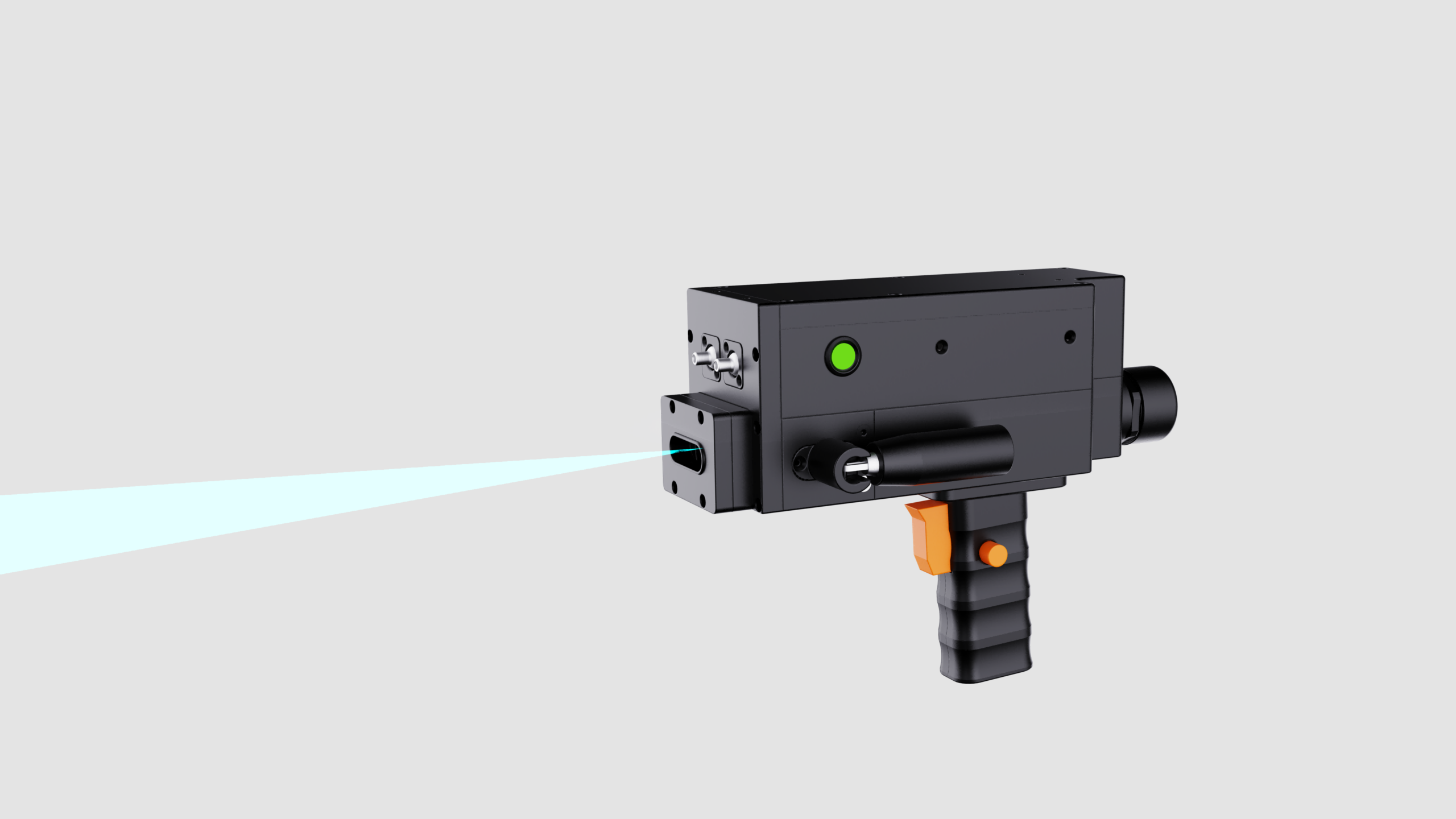

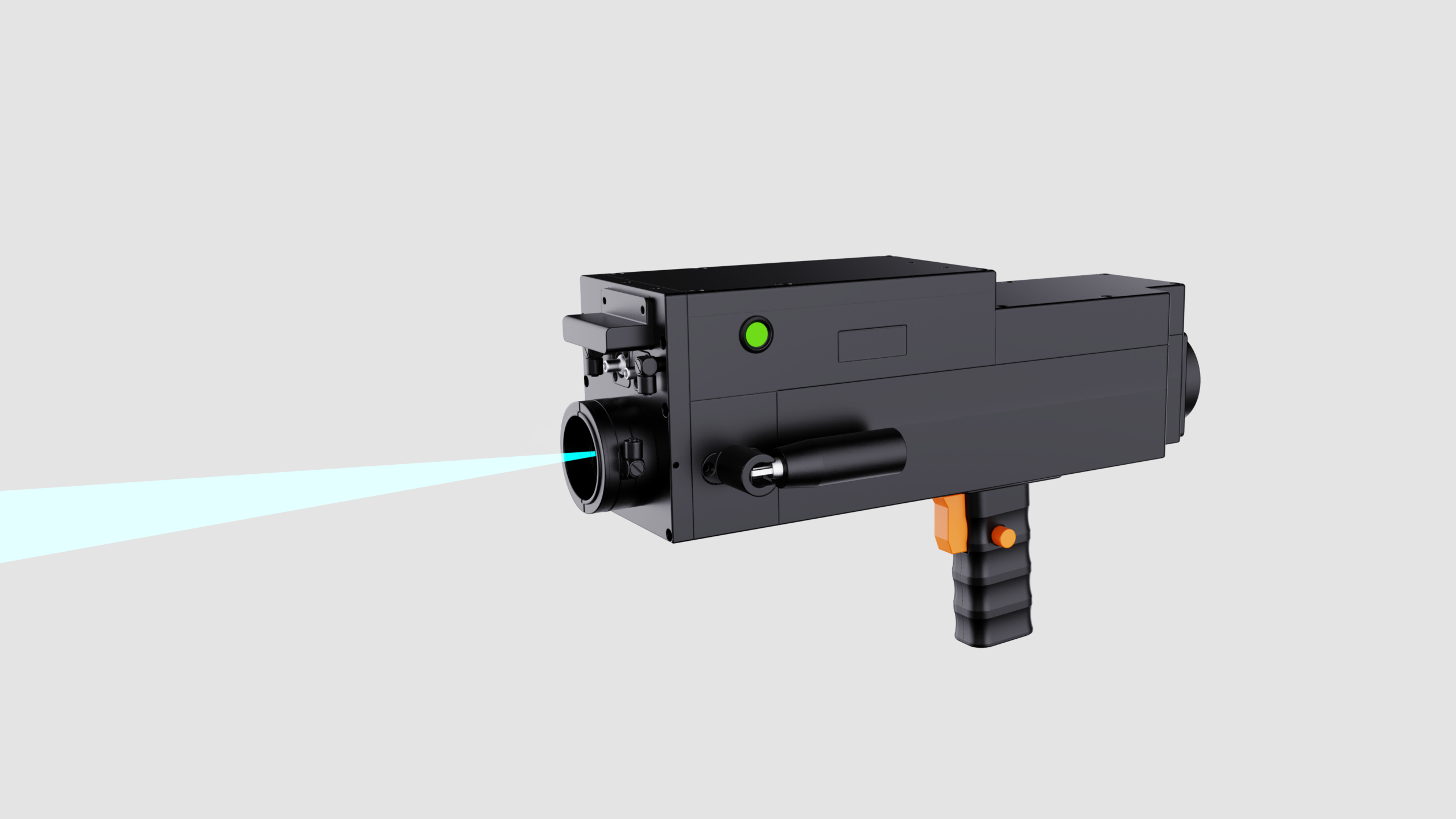

| Cleaning Head Weight※1 | Approximately 3.5kg | Approximately 3.5kg | Approximately 4.0kg |
| Net weight of the whole machine | Approximately 90kg | Approximately 90kg | 170kg |
| Chassis Dimensions | L940mm×W395mm×H900 mm |
L800mm×W680mm×H 1000mm |
L1228mm×W736mm× H1411mm |
| Communication※2 | Standard RJ45 Ethernet port with S7 communication | ||
| Supply Voltage | AC220V±10% | AC220V±10% | AC220V-380±10%V |
| Mains frequency | 50Hz
<800W@HST-100W |
50Hz | 50Hz |
| Power consumption @25°C | <1300W@LCP-C-200W <1800W@LCP-C-300W |
<6000W@LCP-C-500W | <10KW |
| Supply Pressure 0.6MPa dewatered and degreased clean compressed air | |||
| Note:※1 Cleaning heads can be configured with other models as needed based on actual operating conditions.※2 Communication protocols can be customized as required and support all mainstream communication protocols. | |||
The core components of this industry have extremely high precision requirements, and minor defects will affect product performance. The combined technology can achieve precise cleaning and non-destructive testing.
