product description
Portable Welding Dust Containment Systems for Factories are industrial-grade air filtration systems designed to capture and remove harmful fine metal particulate matter (typically 0.1–10 microns) generated during welding. These compact, efficient dust collectors utilize a multistage filtration system, beginning with a cyclone pre-separator for larger particles, and often include an optional activated carbon layer to adsorb gaseous contaminants.
The system features an articulated extraction arm constructed with heat-resistant flexible tubing and steel-reinforced wiring, offering 360° horizontal rotation capability. The telescopic arm design enables effortless extension, while the integrated locking mechanism ensures precise positioning, guaranteeing optimal capture of welding fumes within the welding arc's adjustable range. A balanced counterweight system or magnetic base provides stable positioning in any workstation configuration.
Stability is ensured by a heavy-duty steel base frame mounted on four industrial-grade polyurethane casters. The caster assembly incorporates a central braking system and shock absorbers to ensure smooth movement across uneven workshop floors.

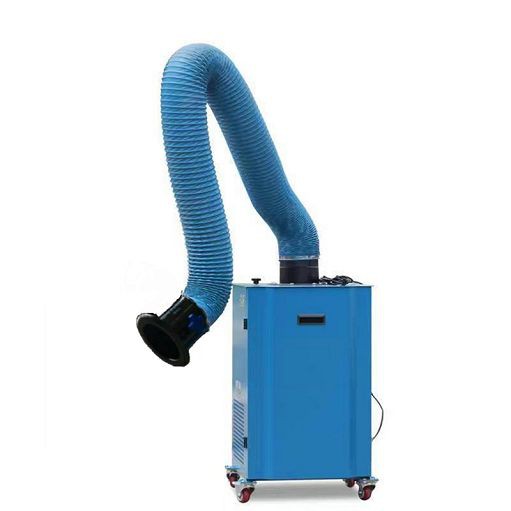

Mobile welding smoke purifier
The portable smoke and dust purifier comprises a cabinet, filter cartridges, a dust collection bin, a fan motor, a pulse-jet cleaning system, and a control panel. Utilizing a top-to-rear airflow design, the system draws air downward from the top opening. This airflow carries dust particles-dislodged from the upper filters via reverse pulse cleaning-into the internal dust collection bin.
|
model number |
EKM-1000 |
|
power supply |
220V/50HZ |
|
airflow dealer |
1200m³/h |
|
machine power |
0.75kw |
|
Filter element filtering area |
15 |
|
filter fineness |
0.3μm |
|
Noisc level db |
≤72dB(A) |
|
Movable arm |
2M or 3M |
|
Overall dimensions |
610*530*1020mm |
|
weight |
55kg |
|
location |
indoor |
Our Advantages
- This high-performance welding fume extractor utilizes high-quality imported coated filter media to deliver superior filtration efficiency, combining excellent air permeability with clean air output.
- The unit features four heavy-duty polyurethane casters for enhanced mobility, including two lockable swivel casters with a robust braking system, ensuring effortless relocation and secure positioning in any workspace.
- Equipped with high-efficiency aluminum alloy impeller fans, the system generates powerful airflow optimized for high-volume smoke extraction, while operating at low noise levels and with minimal energy consumption.
- The extractor includes a highly flexible articulated suction arm that enables smooth expansion, contraction, and full 360-degree rotation, maintaining stable positioning at any angle. This innovative design allows direct extraction at the source of welding fumes, significantly improving workplace air quality and operator safety.
